SKU: SFP-BL45TG-80DC
Product Highlights
Support for 10.7 Gbps data rate
Hot-pluggable SFP+ footprint
1490nm Cooled EML laser and APD photodiode, Up to 80km for SMF transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring

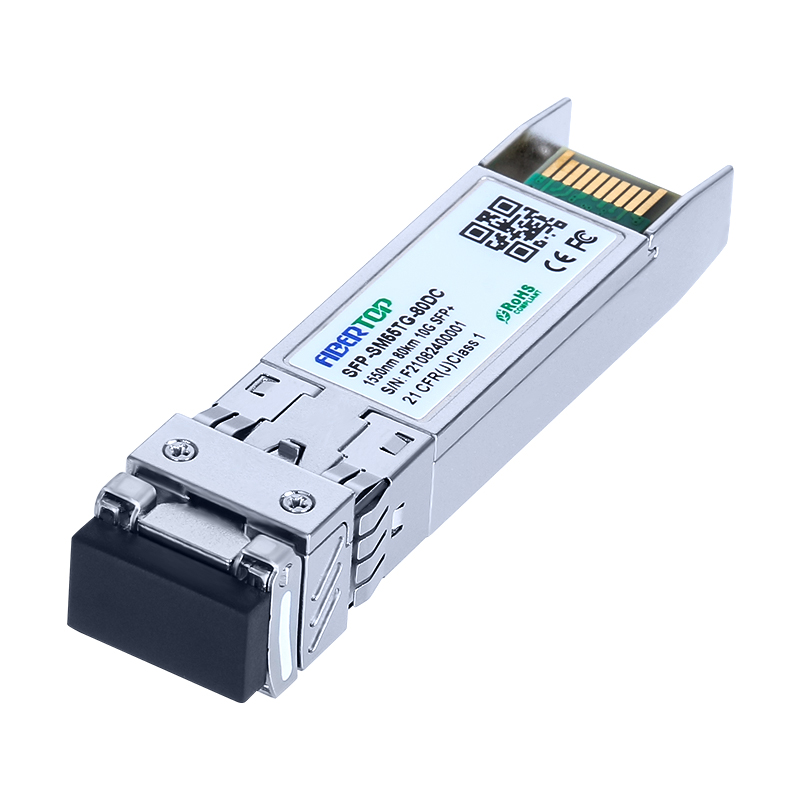

SFP 10G BIDI 80km Transceiver: High-performance, low-cost, supports 10Gbps rate with 80km SMF transmission, built-in cooled EML laser transmitter, APD photodiode, and TIA, MCU control unit, Class I laser safety compliant, compatible with SFP Multi-source protocol and SFF-8472 diagnostics, a high quality choice for communication networks.
| Compatible OEM | Cisco® | Compatible With OEM Part Number(s) | SFP-BL45TG-80DC |
| Transceiver Type | Bx | Reach | 80km |
| Wavelength | 1490nm Tx/1550nm Rx | Form Type | SFP+ |
| Speed Description | 10-Gigabit | Media | SMF |
| Connector | Single LC | Extinction Ratio | >7.5 dB |
| TX Power | -1~4 dBm | Receiver Sensitivity | <-23 dBm |
| Applications |
10Gbps Optical systems 10GBASE-ZR at 10.3125Gbps 10GBASE-ZW at 9.953Gbps LTE systems Other Optical links |
Environment |
Operating:0 to 70°C Storage: -40 to 85°C |
| • Cisco network switches | • Cisco network routers |
| •Cisco firewalls | • Cisco security gateway |
| • Cisco fiber media converter | • Cisco network adapters |
| • Cisco network interface card (NICs) |
• Cisco NAS |
